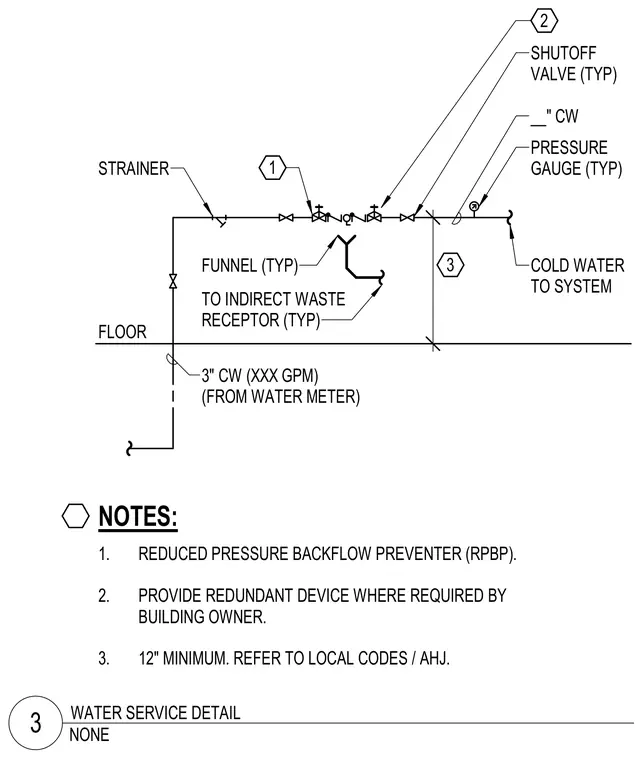

Incoming three-inch cold water service piping rises from the water meter through a strainer and shutoff valve to a reduced pressure backflow preventer assembly. The backflow preventer includes typical shutoff valves on both sides and a funnel connected to an indirect waste receptor at the floor. Downstream piping incorporates a typical pressure gauge before feeding cold water to the system. A twelve-inch minimum clearance is maintained above the floor, and redundant devices are provided as required by the building owner and local authorities having jurisdiction.
STRAINER 3" CW (XXX GPM) (FROM WATER METER) FUNNEL (TYP) TO INDIRECT WASTE RECEPTOR (TYP) FLOOR COLD WATER TO SYSTEM 1. REDUCED PRESSURE BACKFLOW PREVENTER (RPBP). 2. PROVIDE REDUNDANT DEVICE WHERE REQUIRED BY BUILDING OWNER. 3. 12" MINIMUM. REFER TO LOCAL CODES / AHJ. NOTES: 1 3 2 __" CW PRESSURE GAUGE (TYP) SHUTOFF VALVE (TYP) NONE 3 WATER SERVICE DETAIL
