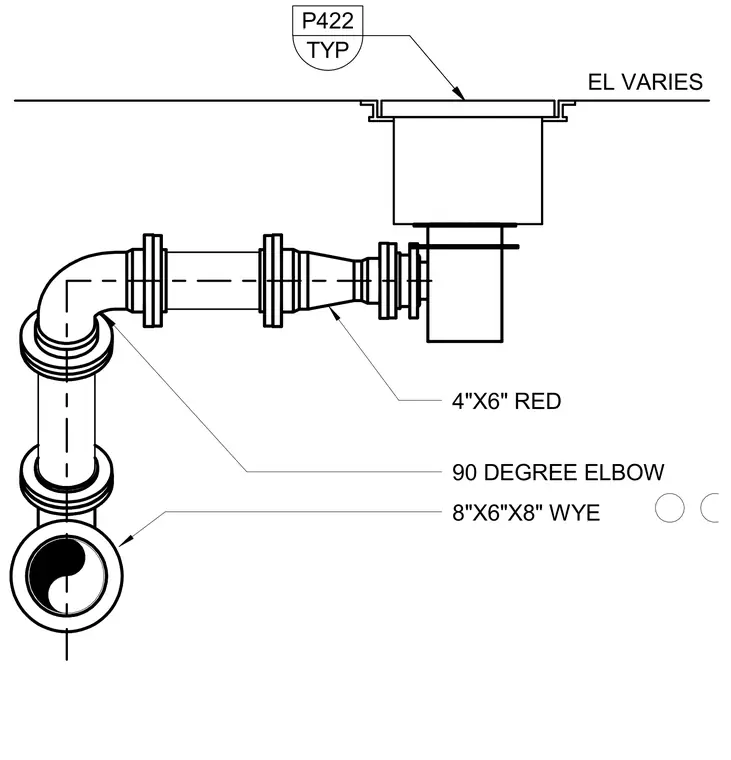

A trench drain body connects to a varying elevation outlet pipe. A reducer transitions pipe diameters, followed by a ninety-degree elbow and an eight-by-six-by-eight-inch wye fitting in the drainage run.
