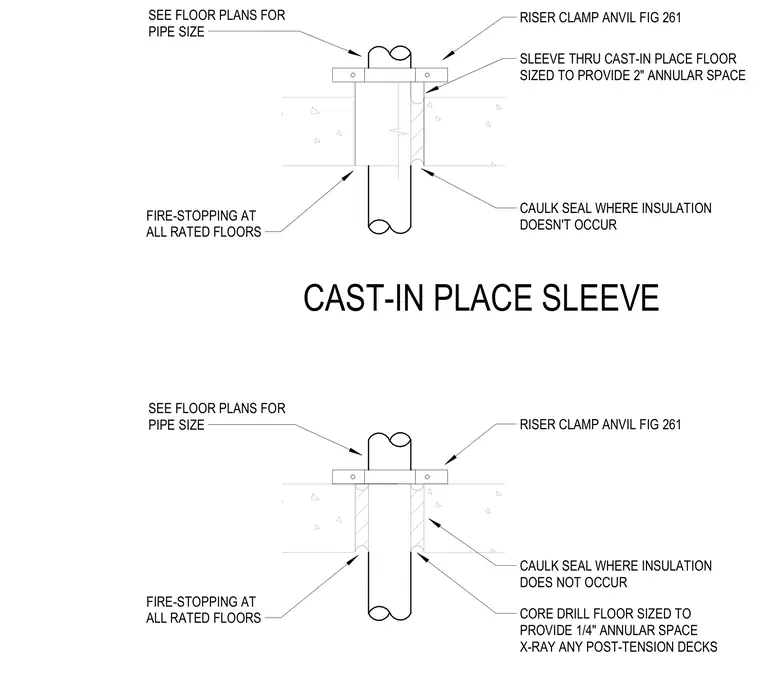

Vertical pipes pass through concrete floor slabs using either a cast-in-place sleeve sized to provide a two-inch annular space or a core drilled floor sized to provide a one-quarter-inch annular space. Post-tension decks require X-ray scanning prior to core drilling. Riser clamps such as Anvil Figure 261 support the pipe at the top of the slab. Caulk sealant is applied where insulation does not occur, and fire-stopping is installed at all rated floors.
SEE FLOOR PLANS FOR PIPE SIZE FIRE-STOPPING AT ALL RATED FLOORS SEE FLOOR PLANS FOR PIPE SIZE FIRE-STOPPING AT ALL RATED FLOORS RISER CLAMP ANVIL FIG 261 CAULK SEAL WHERE INSULATION DOES NOT OCCUR CORE DRILL FLOOR SIZED TO PROVIDE 1/4" ANNULAR SPACE X-RAY ANY POST-TENSION DECKS CAULK SEAL WHERE INSULATION DOESN'T OCCUR SLEEVE THRU CAST-IN PLACE FLOOR SIZED TO PROVIDE 2" ANNULAR SPACE RISER CLAMP ANVIL FIG 261 CAST-IN PLACE SLEEVE
