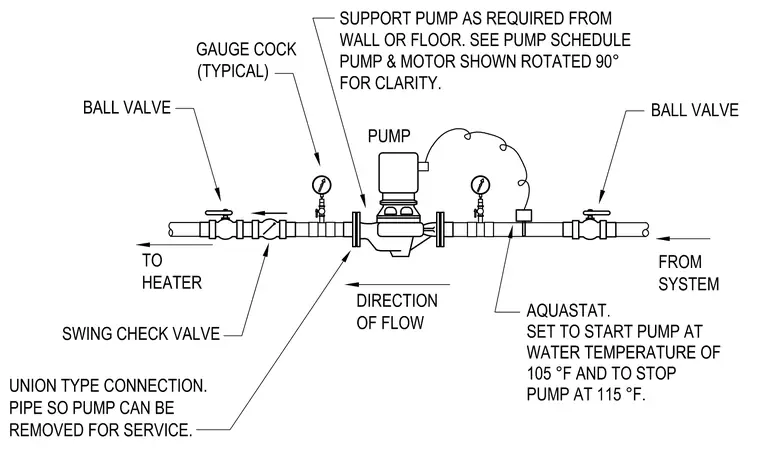

A hot water return pump is connected to the plumbing system with isolation ball valves on both sides for maintenance. Union-type connections allow the pump to be removed for service. An aquastat is set to start the pump at a water temperature of 105 degrees Fahrenheit and stop it at 115 degrees Fahrenheit. Gauge cocks and a swing check valve manage flow direction and pressure monitoring.
FOR CLARITY. WALL OR FLOOR. SEE PUMP SCHEDULE PUMP & MOTOR SHOWN ROTATED 90° SUPPORT PUMP AS REQUIRED FROM HEATER SWING CHECK VALVE PIPE SO PUMP CAN BE REMOVED FOR SERVICE. UNION TYPE CONNECTION. TO DIRECTION OF FLOW GAUGE COCK (TYPICAL) BALL VALVE PUMP AQUASTAT. FROM SYSTEM BALL VALVE SET TO START PUMP AT WATER TEMPERATURE OF 105 °F AND TO STOP PUMP AT 115 °F.
