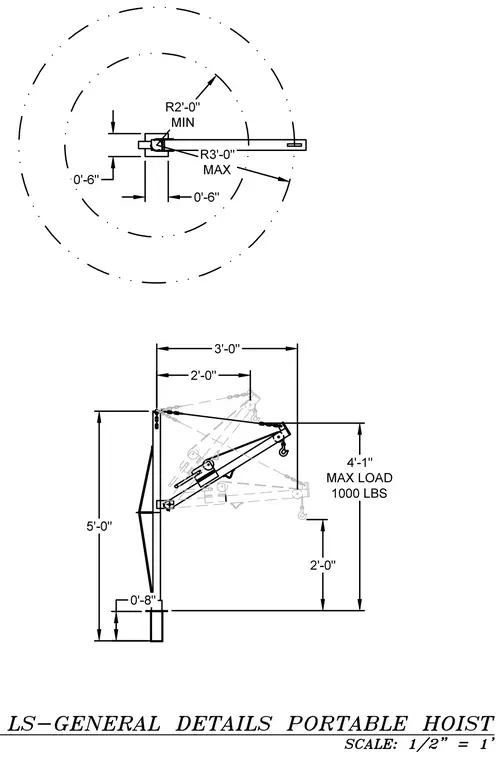

A portable hoist assembly is detailed with plan and elevation views indicating operational clearances, reach radii, and maximum load capacity. The mast stands at five feet tall with an eight-inch base offset, supporting an adjustable boom with a maximum load of one thousand pounds at a four-foot-one-inch maximum height. The plan view outlines a minimum radius of two feet and a maximum radius of three feet around the central vertical support. Alternate boom positions are shown in dashed lines to illustrate the full range of motion and hook travel heights.
