Plumbing · P-RV8Q7

Reducing Tee (Or Test Plug

Elements

About this detail

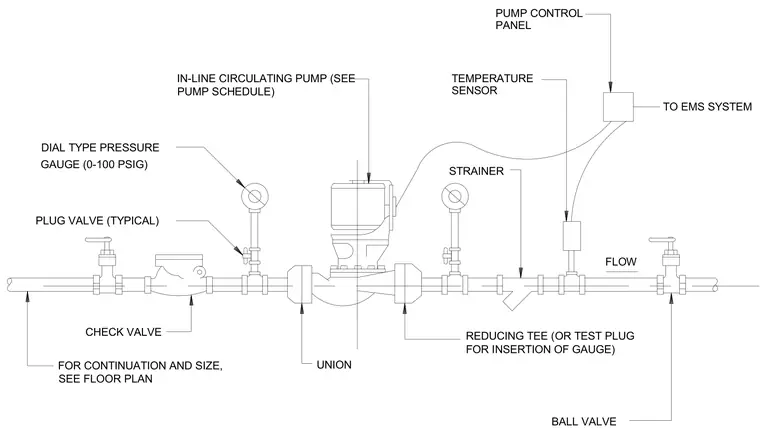

This plumbing detail shows an in-line circulating pump installed along a piping run, connected via unions on both the suction and discharge sides. The assembly includes a plug valve and check valve upstream, alongside a dial-type pressure gauge rated for zero to one hundred PSIG. Downstream components feature a Y-strainer, a reducing tee or test plug for gauge insertion, a temperature sensor, and a ball valve before continuing to the floor plan. A pump control panel connects to the circulating pump and temperature sensor, linking out to the energy management system. Pipe sizing and continuation details are referenced directly to the floor plan, with pump sizing per the pump schedule.
