Elevator Pit Sump Pump Detail

Elements

About this detail

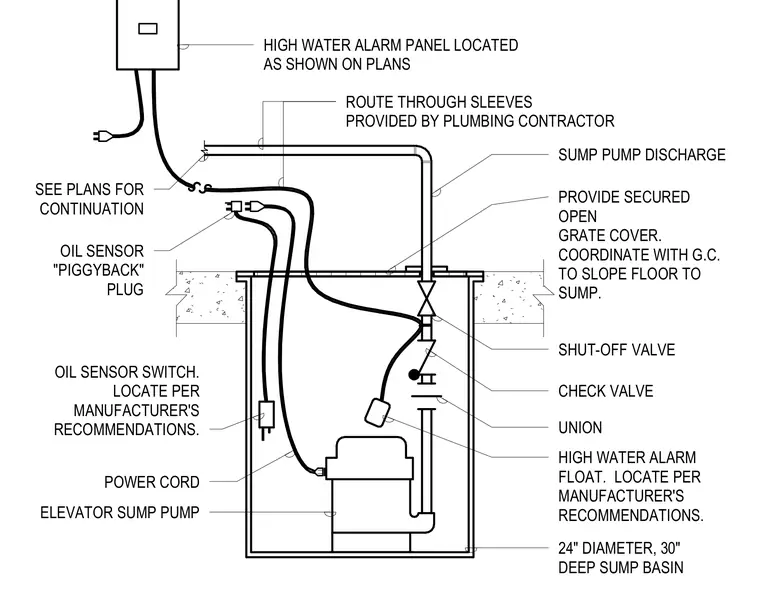

An elevator sump pump installation featuring a twenty-four inch diameter by thirty-inch deep sump basin with a secured open grate cover, requiring coordination with the general contractor to slope the surrounding floor toward the sump. The assembly houses an elevator sump pump connected to a discharge line equipped with a union, check valve, and shut-off valve, routing through sleeves provided by the plumbing contractor. An oil sensor switch and high water alarm float are positioned inside the basin per manufacturer recommendations, connecting via power cords and a piggyback plug to a high water alarm panel located as shown on plans.
