A heavy-duty cleanout box and cover sit flush with finished grade atop a cleanout plug. A factory-coated cast iron body remains independent of the cleanout box housing. The assembly ties into the below-grade piping through a Y-fitting or a combination Y and one-eighth bend. Non-concrete landscaped locations require a twenty-four by twenty-four inch concrete pad for box protection.

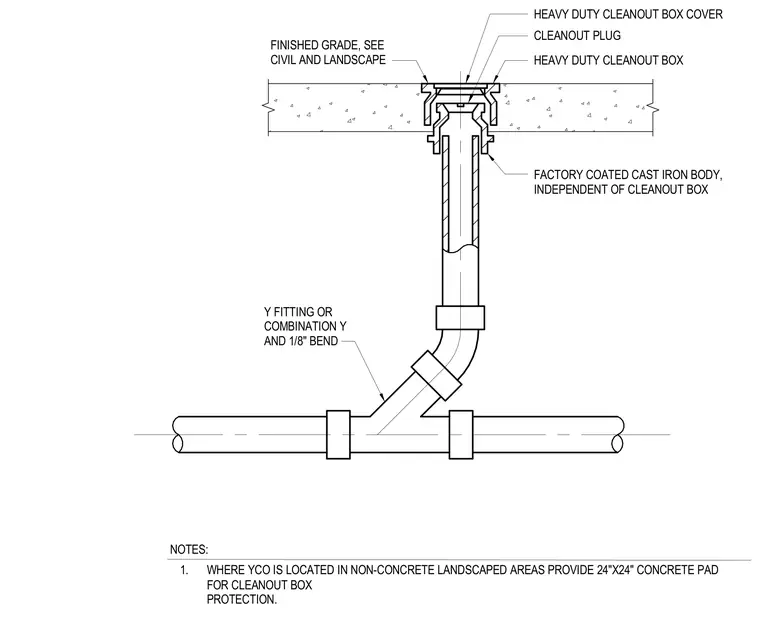

HEAVY DUTY CLEANOUT BOX CLEANOUT PLUG FINISHED GRADE, SEE CIVIL AND LANDSCAPE FACTORY COATED CAST IRON BODY, INDEPENDENT OF CLEANOUT BOX Y FITTING OR COMBINATION Y AND 1/8" BEND HEAVY DUTY CLEANOUT BOX COVER NOTES: 1. WHERE YCO IS LOCATED IN NON-CONCRETE LANDSCAPED AREAS PROVIDE 24"X24" CONCRETE PAD FOR CLEANOUT BOX PROTECTION.
