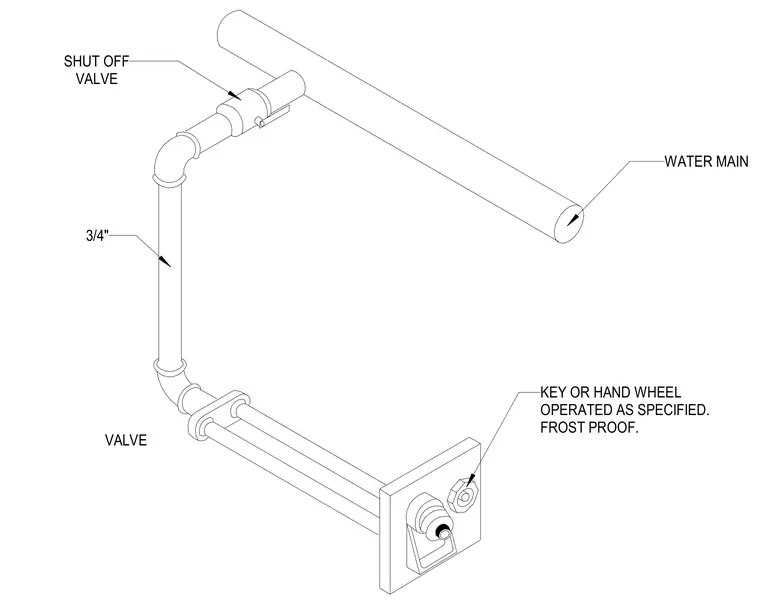

A frost-proof sillcock connects to a three-quarter-inch water supply line branching off the water main. An inline shut-off valve controls the water flow, operated by either a key or a hand wheel as specified on the drawings.
WATER MAIN SHUT OFF VALVE 3/4" VALVE KEY OR HAND WHEEL OPERATED AS SPECIFIED. FROST PROOF.
