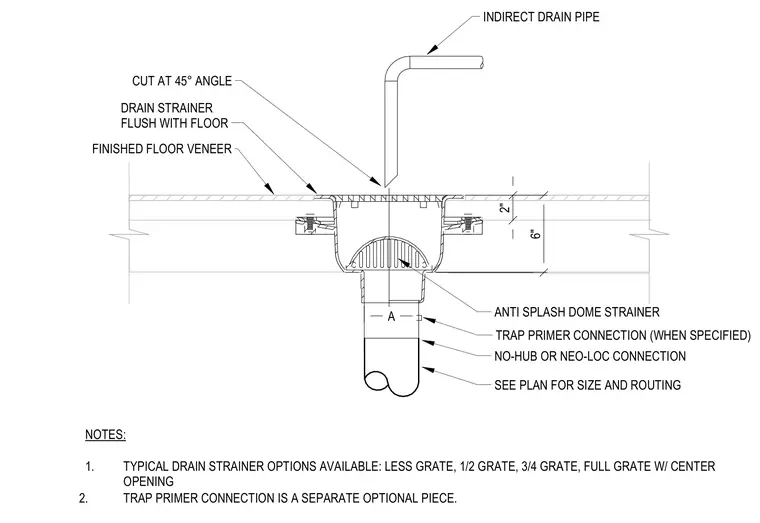

A floor sink assembly is set flush with the finished floor veneer. An indirect drain pipe terminates above the sink with a cut at a forty-five-degree angle. The body incorporates an anti-splash dome strainer and an optional trap primer connection. The outlet connects via a no-hub or neo-loc connection to piping sized and routed per plan.
A 2" 6" INDIRECT DRAIN PIPE SEE PLAN FOR SIZE AND ROUTING NO-HUB OR NEO-LOC CONNECTION TRAP PRIMER CONNECTION (WHEN SPECIFIED) DRAIN STRAINER FLUSH WITH FLOOR FINISHED FLOOR VENEER ANTI SPLASH DOME STRAINER CUT AT 45° ANGLE NOTES: 1. TYPICAL DRAIN STRAINER OPTIONS AVAILABLE: LESS GRATE, 1/2 GRATE, 3/4 GRATE, FULL GRATE W/ CENTER OPENING 2. TRAP PRIMER CONNECTION IS A SEPARATE OPTIONAL PIECE.
