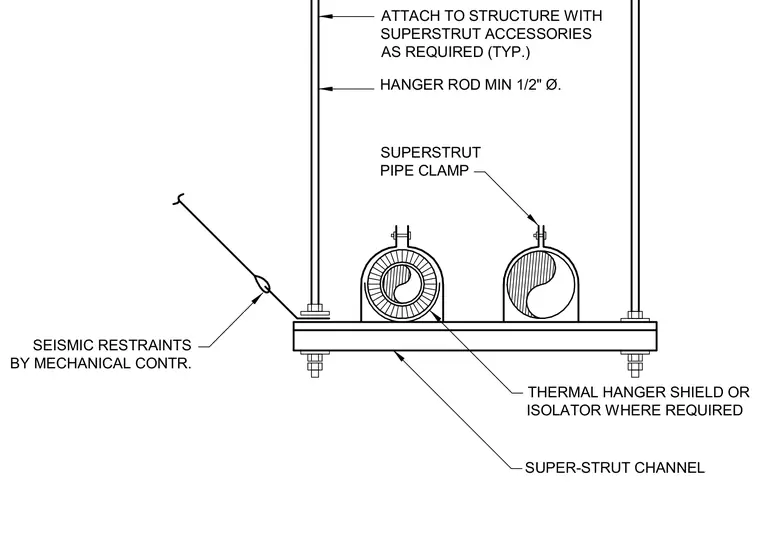

Suspended piping is supported on a horizontal Superstrut channel secured by vertical hanger rods with a minimum diameter of one-half inch. The assembly attaches to the overhead structure using Superstrut accessories typical. Pipes are held in place with Superstrut pipe clamps and incorporate thermal hanger shields or isolators where required. Seismic restraints provided by the mechanical contractor tie into the trapeze assembly.
ATTACH TO STRUCTURE WITH SUPERSTRUT ACCESSORIES AS REQUIRED (TYP.) HANGER ROD MIN 1/2" Ø. SUPERSTRUT PIPE CLAMP THERMAL HANGER SHIELD OR ISOLATOR WHERE REQUIRED SUPER-STRUT CHANNEL SEISMIC RESTRAINTS BY MECHANICAL CONTR.
