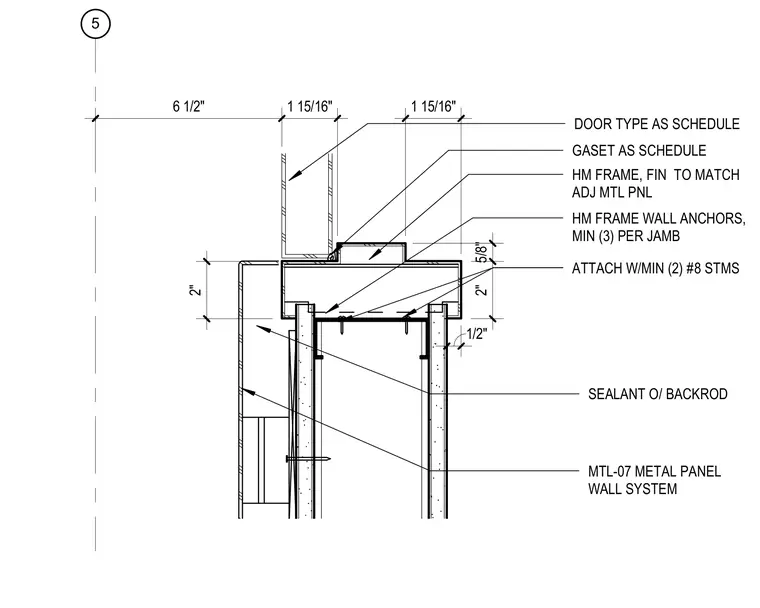

A hollow metal frame connects to a metal panel wall system with a finish matching adjacent metal panels. The frame is secured using a minimum of three wall anchors per jamb and attached with a minimum of two number eight sheet metal screws. Gaskets and door types are installed as scheduled. A joint is sealed with sealant over backer rod at the transition to the metal panel wall system designated as MTL-07.
5 6 1/2" 1 15/16" HM FRAME WALL ANCHORS, MIN (3) PER JAMB HM FRAME, FIN TO MATCH ADJ MTL PNL ATTACH W/MIN (2) #8 STMS GASET AS SCHEDULE DOOR TYPE AS SCHEDULE SEALANT O/ BACKROD MTL-07 METAL PANEL WALL SYSTEM 2" 1/2" 2" 5/8" 1 15/16"
