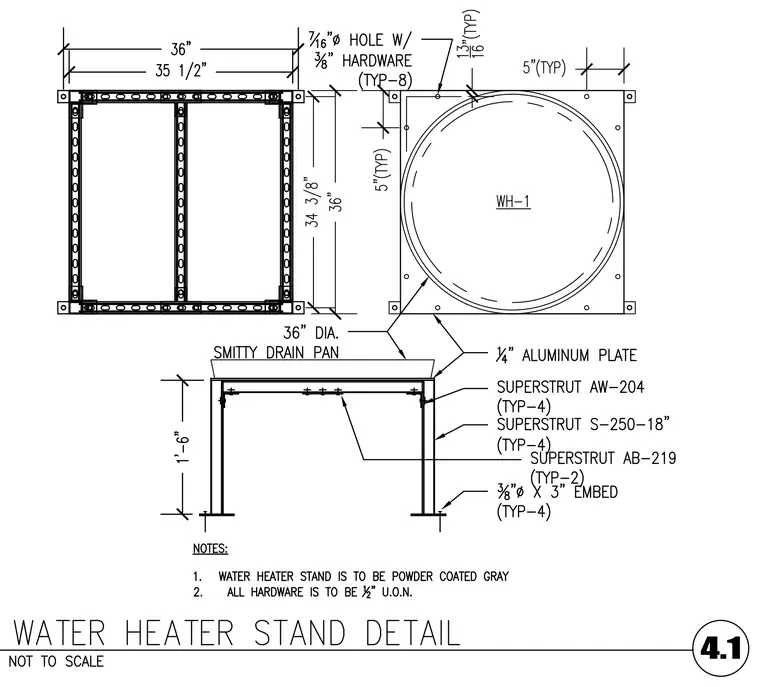

The assembly consists of a thirty-six-inch diameter Smitty drain pan resting on an aluminum plate and a Superstrut support frame. The frame utilizes four Superstrut AW-204 members, four S-250-18 members, and two AB-219 channels, secured with seven-sixteenths-inch diameter holes and three-eighths-inch hardware typical of eight locations. The frame is anchored using three-eighths-inch diameter by three-inch embeds typical of four locations. The water heater stand is to be powder coated gray, and all hardware is to be one-half-inch unless otherwise noted.
