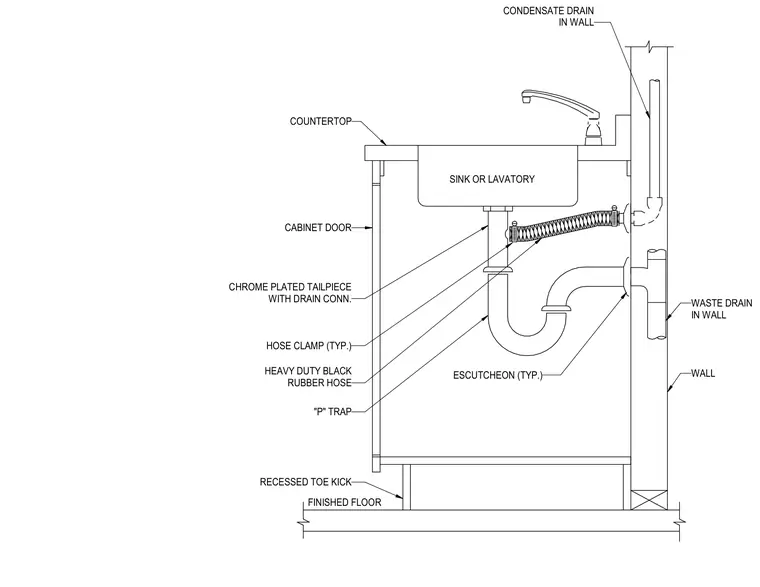

A condensate drain connects into the waste line through a heavy-duty black rubber hose secured with typical hose clamps. The hose links a wall-mounted condensate drain to a chrome-plated tailpiece with a drain connection beneath the sink or lavatory. A standard P-trap ties into the waste drain in the wall, finished with typical escutcheons. The assembly is housed within a countertop cabinet featuring a recessed toe kick resting on the finished floor.
FINISHED FLOOR HEAVY DUTY BLACK RUBBER HOSE SINK OR LAVATORY ESCUTCHEON (TYP.) CHROME PLATED TAILPIECE WITH DRAIN CONN. HOSE CLAMP (TYP.) "P" TRAP COUNTERTOP CABINET DOOR RECESSED TOE KICK CONDENSATE DRAIN IN WALL WASTE DRAIN IN WALL WALL
