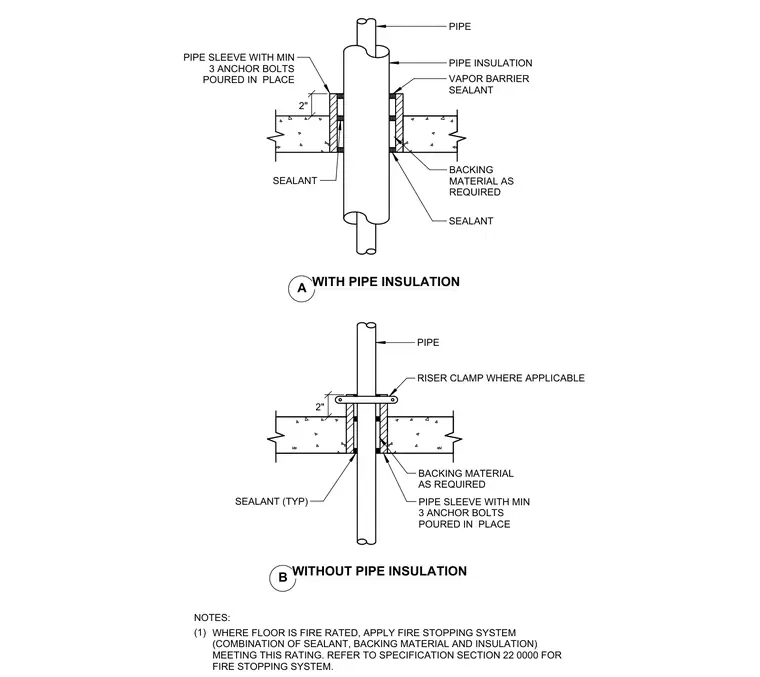

A vertical pipe passes through a concrete floor slab using a cast-in-place pipe sleeve secured with a minimum of three anchor bolts. The annular space includes backing material as required and sealant applied at top and bottom typical joints, with a vapor barrier and pipe insulation where specified. An alternate uninsulated condition incorporates a riser clamp bearing on the top of the sleeve. Fire-rated floor assemblies require an approved fire-stopping system consisting of sealant, backing material, and insulation matching the required fire rating per specification section 22 0000.
2" PIPE PIPE INSULATION SEALANT SEALANT PIPE SLEEVE WITH MIN 3 ANCHOR BOLTS POURED IN PLACE BACKING MATERIAL AS REQUIRED VAPOR BARRIER SEALANT NOTES: (1) SEALANT (TYP) RISER CLAMP WHERE APPLICABLE PIPE PIPE SLEEVE WITH MIN 3 ANCHOR BOLTS POURED IN PLACE BACKING MATERIAL AS REQUIRED WHERE FLOOR IS FIRE RATED, APPLY FIRE STOPPING SYSTEM (COMBINATION OF SEALANT, BACKING MATERIAL AND INSULATION) MEETING THIS RATING. REFER TO SPECIFICATION SECTION 22 0000 FOR FIRE STOPPING SYSTEM. 2" WITH PIPE INSULATION WITHOUT PIPE INSULATION A B
