Floor Cleanout Detail

Materials

Elements

Floors / Slabs Drainage Site / Paving Anchors / Embeds

About this detail

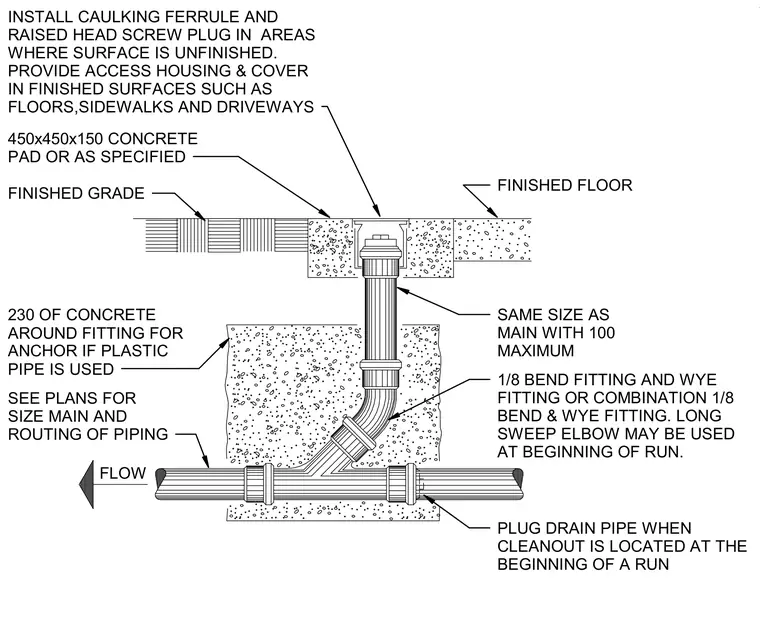

A floor cleanout connects to a main drainage pipe beneath a finished floor or grade. A caulking ferrule and raised head screw plug are installed in unfinished areas, while an access housing and cover are provided in finished surfaces such as floors, sidewalks, and driveways. The drainage assembly incorporates an eighth-bend fitting and a wye fitting, or a combination fitting, with long sweep elbows permitted at the beginning of a run. A four hundred fifty by four hundred fifty by one hundred fifty concrete pad supports the cleanout, and two hundred thirty of concrete is placed around the fitting for anchorage when plastic pipe is used. The drain pipe is plugged when the cleanout is located at the beginning of a run.
