Plumbing · P-RCB8K

Natural Gas Meter Assembly and Regulator Detail

Materials

Concrete Steel

Elements

Stairs

Connections

Bolted Connection

About this detail

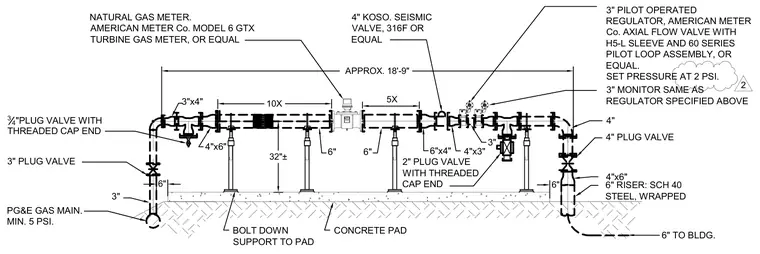

A natural gas meter assembly connects to a PG&E gas main via Schedule 40 wrapped steel riser piping. The setup incorporates an American Meter Co. Model 6 GTX turbine gas meter, a 4-inch Koso seismic valve, a 3-inch pilot operated regulator set at 2 psi, and a 3-inch monitor. Bolted pipe supports are anchored to a concrete pad, with plug valves provided at designated connection points and threaded cap ends.
