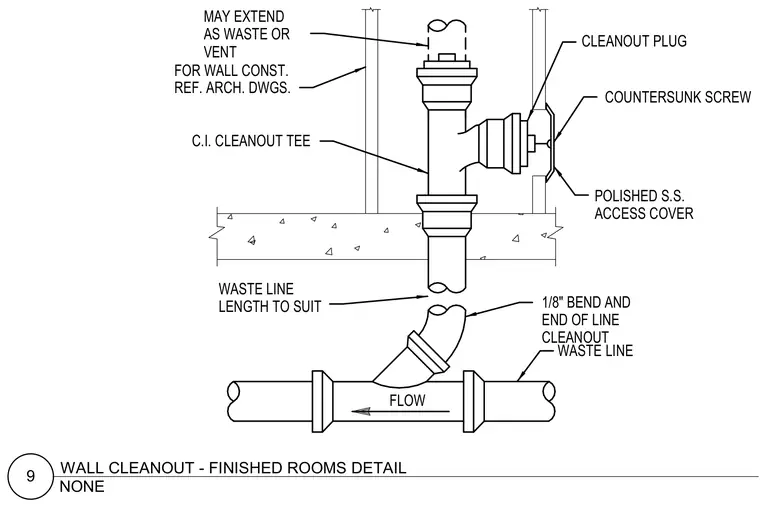

A cast-iron cleanout tee connects to the waste line and may extend upward as either a waste or vent pipe. A cleanout plug seals the branch, secured behind a polished stainless steel access cover fastened with a countersunk screw. The waste line extends down to a one-eighth bend at the end of the line, connecting to the main horizontal waste piping. Wall construction dimensions and details coordinate with architectural drawings.
C.I. CLEANOUT TEE WASTE LINE FLOW MAY EXTEND AS WASTE OR VENT CLEANOUT PLUG COUNTERSUNK SCREW POLISHED S.S. ACCESS COVER 1/8" BEND AND END OF LINE CLEANOUT WASTE LINE LENGTH TO SUIT FOR WALL CONST. REF. ARCH. DWGS. NONE 9 WALL CLEANOUT - FINISHED ROOMS DETAIL
