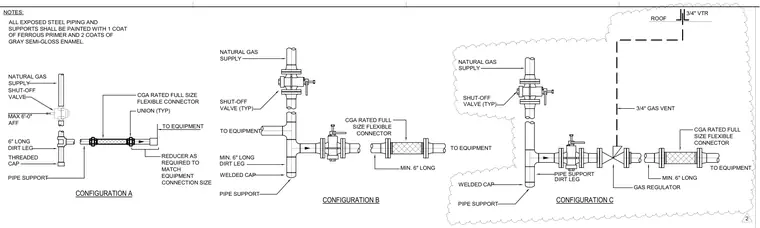

Natural gas supply piping transitions to equipment through three distinct connection configurations utilizing threaded caps, pipe supports, shut-off valves, and unions. Each configuration features a minimum six-inch long dirt leg with a welded cap, and a Canadian Gas Association rated full-size flexible connector leading to the equipment. Configuration C additionally includes a gas regulator and a three-quarter-inch gas vent routed through the roof. All exposed steel piping and supports receive one coat of ferrous primer and two coats of gray semi-gloss enamel.
ALL EXPOSED STEEL PIPING AND SUPPORTS SHALL BE PAINTED WITH 1 COAT OF FERROUS PRIMER AND 2 COATS OF GRAY SEMI-GLOSS ENAMEL. NOTES: TO EQUIPMENT WELDED CAP PIPE SUPPORT MAX 6'-0" AFF PIPE SUPPORT CGA RATED FULL SIZE FLEXIBLE CONNECTOR CONFIGURATION B CONFIGURATION A REDUCER AS REQUIRED TO MATCH EQUIPMENT CONNECTION SIZE UNION (TYP) CGA RATED FULL SIZE FLEXIBLE CONNECTOR SHUT-OFF VALVE THREADED CAP 6" LONG DIRT LEG NATURAL GAS SUPPLY TO EQUIPMENT NATURAL GAS SUPPLY TO EQUIPMENT SHUT-OFF VALVE (TYP) PIPE SUPPORT MIN. 6" LONG DIRT LEG MIN. 6" LONG DIRT LEG PIPE SUPPORT SHUT-OFF VALVE (TYP) TO EQUIPMENT NATURAL GAS SUPPLY GAS REGULATOR WELDED CAP ROOF 3/4" VTR 3/4" GAS VENT CGA RATED FULL SIZE FLEXIBLE CONNECTOR MIN. 6" LONG CONFIGURATION C 2
