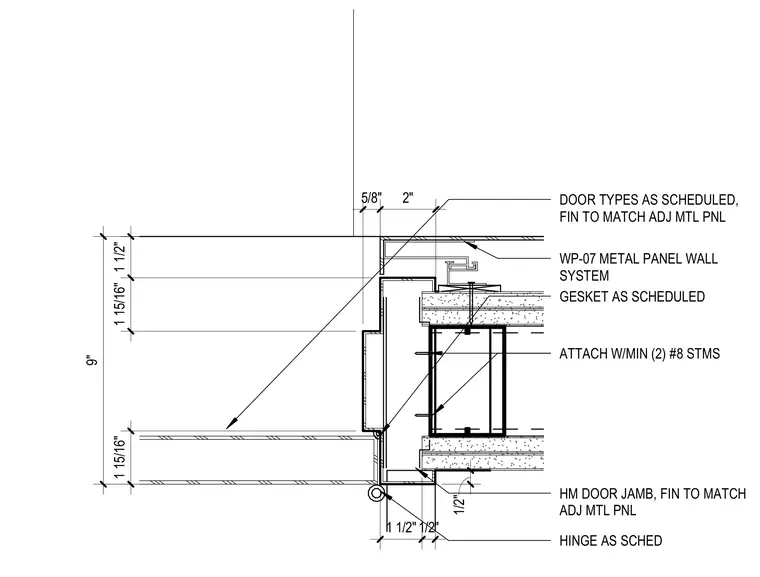

A hollow metal door jamb connects to an adjacent metal panel wall system with a finish to match. Gaskets are installed as scheduled. The assembly is attached with a minimum of two number eight screws. Hinge types are provided per schedule.
HINGE AS SCHED WP-07 METAL PANEL WALL SYSTEM DOOR TYPES AS SCHEDULED, FIN TO MATCH ADJ MTL PNL HM DOOR JAMB, FIN TO MATCH ADJ MTL PNL GESKET AS SCHEDULED ATTACH W/MIN (2) #8 STMS 9" 1/2" 1 1/2"1/2" 5/8" 2" 1 15/16" 1 1/2" 1 15/16"
