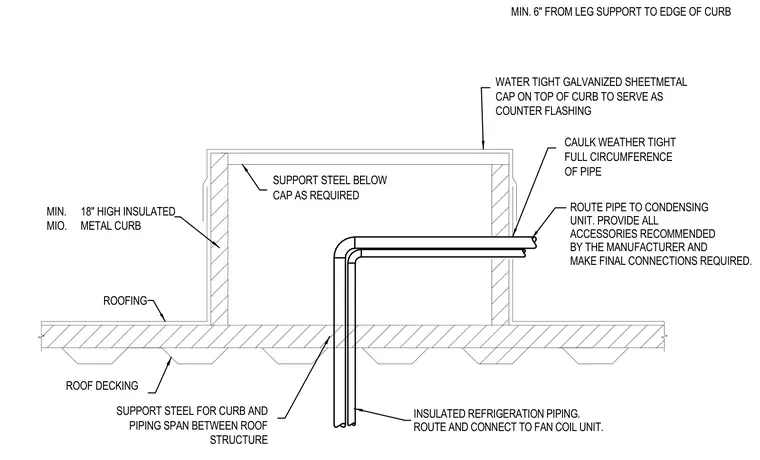

An insulated metal curb with a minimum height of 18 inches is mounted over roof decking and supported by structural steel framing below. A watertight galvanized sheet metal cap covers the top of the curb to serve as counter flashing. Insulated refrigeration piping penetrates the assembly, with a weather-tight caulk seal applied around the full circumference of the pipe. The piping connects to a fan coil unit and a condensing unit using manufacturer-recommended accessories.
MIN. 18" HIGH INSULATED MIO. METAL CURB ROOFING SUPPORT STEEL BELOW CAP AS REQUIRED MIN. 6" FROM LEG SUPPORT TO EDGE OF CURB COUNTER FLASHING CAP ON TOP OF CURB TO SERVE AS WATER TIGHT GALVANIZED SHEETMETAL OF PIPE FULL CIRCUMFERENCE CAULK WEATHER TIGHT STRUCTURE PIPING SPAN BETWEEN ROOF SUPPORT STEEL FOR CURB AND ROOF DECKING INSULATED REFRIGERATION PIPING. ROUTE AND CONNECT TO FAN COIL UNIT. ROUTE PIPE TO CONDENSING UNIT. PROVIDE ALL ACCESSORIES RECOMMENDED BY THE MANUFACTURER AND MAKE FINAL CONNECTIONS REQUIRED.
