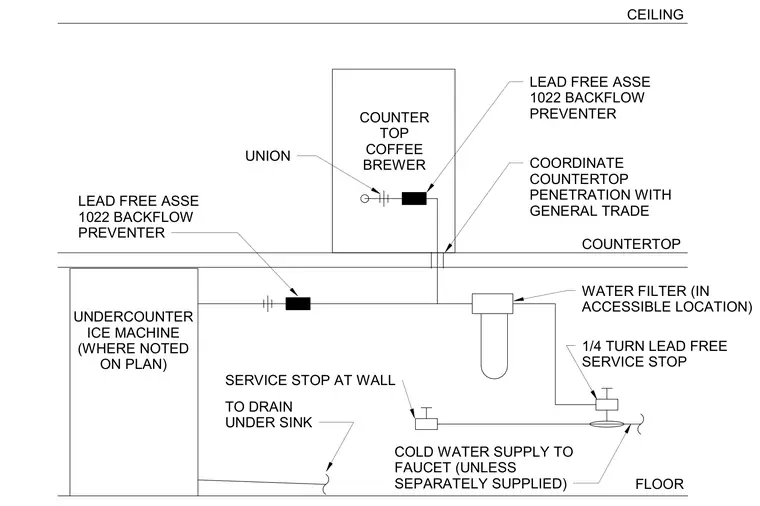

A cold water supply line connects through a service stop at the wall and routes through an accessible water filter before feeding both a countertop coffee brewer and an undercounter ice machine. Each appliance branch line is equipped with a lead-free ASSE 1022 backflow preventer and a union fitting. Countertop penetrations for the coffee brewer require coordination with general trades. The ice machine branch includes a drainage connection routed to a sink waste line.
UNION FLOOR COUNTERTOP CEILING COUNTER TOP COFFEE BREWER LEAD FREE ASSE 1022 BACKFLOW PREVENTER COORDINATE COUNTERTOP PENETRATION WITH GENERAL TRADE 1/4 TURN LEAD FREE SERVICE STOP COLD WATER SUPPLY TO FAUCET (UNLESS SEPARATELY SUPPLIED) SERVICE STOP AT WALL WATER FILTER (IN ACCESSIBLE LOCATION) UNDERCOUNTER ICE MACHINE (WHERE NOTED ON PLAN) LEAD FREE ASSE 1022 BACKFLOW PREVENTER TO DRAIN UNDER SINK
