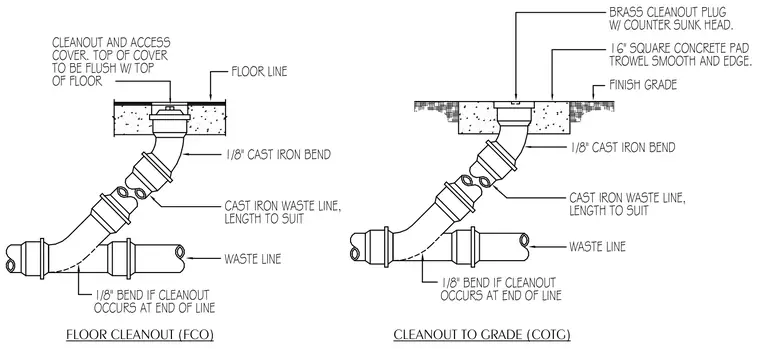

A brass cleanout plug with a countersunk head connects to a cast iron waste line via an eighth-bend fitting. The waste line incorporates an eighth-bend fitting if the cleanout occurs at the end of the line, with length to suit field conditions. For exterior grade installations, the cleanout assembly is set within a sixteen-inch square concrete pad that is trowel-smoothed and edged. The cleanout and access cover top is set flush with the top of the floor line or finish grade.
CLEANOUT TO GRADE (COTG) FLOOR CLEANOUT (FCO) 1/8" BEND IF CLEANOUT OCCURS AT END OF LINE LENGTH TO SUIT CAST IRON WASTE LINE, 1/8" CAST IRON BEND WASTE LINE CAST IRON WASTE LINE, LENGTH TO SUIT 1/8" CAST IRON BEND OCCURS AT END OF LINE 1/8" BEND IF CLEANOUT WASTE LINE COVER. TOP OF COVER CLEANOUT AND ACCESS TO BE FLUSH W/ TOP OF FLOOR FLOOR LINE FINISH GRADE BRASS CLEANOUT PLUG W/ COUNTER SUNK HEAD. TROWEL SMOOTH AND EDGE. 16" SQUARE CONCRETE PAD
