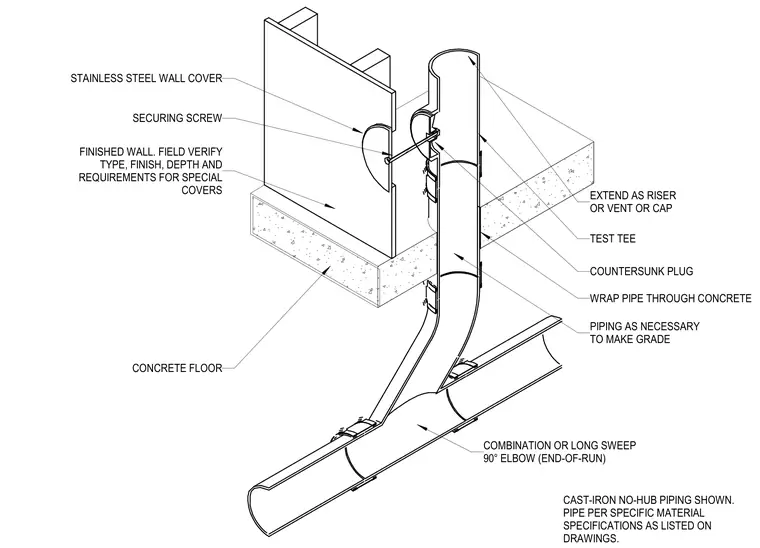

This isometric detail shows a wall cleanout assembly connecting to cast iron no-hub piping that routes through a concrete floor slab. The assembly features a test tee with a countersunk plug, accessed through a finished wall via a stainless steel wall cover secured with screws. The pipe is wrapped where it passes through concrete, extending as a riser, vent, or cap as required. A combination or long sweep ninety-degree elbow forms the end-of-run connection to the main drainage line.
EXTEND AS RISER OR VENT OR CAP TEST TEE COUNTERSUNK PLUG WRAP PIPE THROUGH CONCRETE PIPING AS NECESSARY TO MAKE GRADE COMBINATION OR LONG SWEEP 90° ELBOW (END-OF-RUN) CAST-IRON NO-HUB PIPING SHOWN. PIPE PER SPECIFIC MATERIAL SPECIFICATIONS AS LISTED ON DRAWINGS. CONCRETE FLOOR FINISHED WALL. FIELD VERIFY TYPE, FINISH, DEPTH AND REQUIREMENTS FOR SPECIAL COVERS SECURING SCREW STAINLESS STEEL WALL COVER
