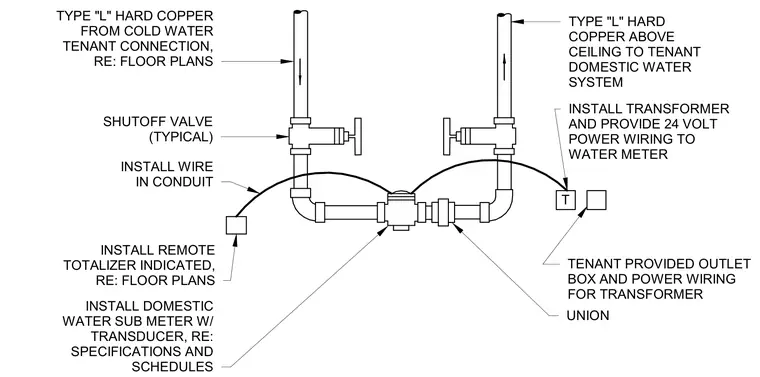

Type L hard copper piping connects to the cold water tenant connection and runs to the domestic water system with inline shutoff valves and unions. A domestic water submeter with a transducer integrates into the piping line. A transformer provides twenty-four-volt power wiring to the water meter, while wire in conduit connects to a remote totalizer indicator.
T UNION INSTALL REMOTE TOTALIZER INDICATED, RE: FLOOR PLANS TENANT PROVIDED OUTLET BOX AND POWER WIRING FOR TRANSFORMER TYPE "L" HARD COPPER FROM COLD WATER TENANT CONNECTION, RE: FLOOR PLANS TYPE "L" HARD COPPER ABOVE CEILING TO TENANT DOMESTIC WATER SYSTEM INSTALL TRANSFORMER AND PROVIDE 24 VOLT POWER WIRING TO WATER METER SHUTOFF VALVE (TYPICAL) INSTALL DOMESTIC WATER SUB METER W/ TRANSDUCER, RE: SPECIFICATIONS AND SCHEDULES INSTALL WIRE IN CONDUIT
