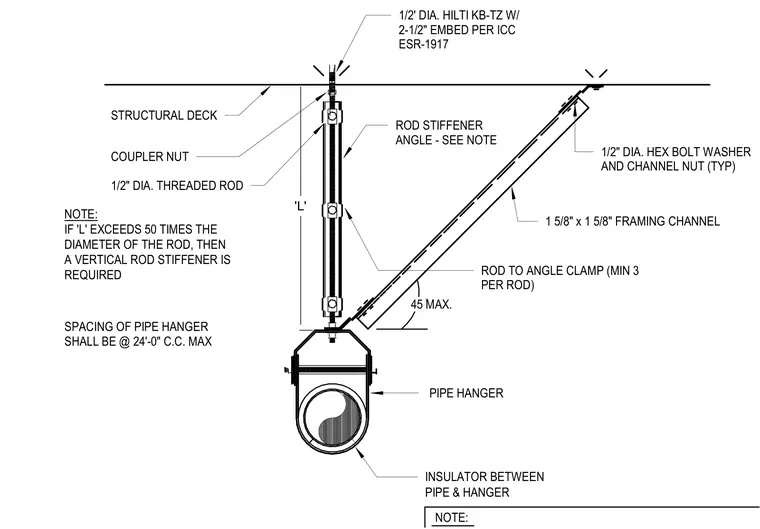

A pipe hanger is suspended from the overhead structural deck using a half-inch diameter Hilti KB-TZ anchor with a two-and-a-half-inch embedment per ICC ESR-1917, connected via a half-inch threaded rod and a coupler nut. A thermal or protective insulator is installed between the pipe and the hanger strap. A diagonal brace consisting of a one-and-five-eighths by one-and-five-eighths-inch framing channel is anchored back to the deck at a forty-five-degree maximum angle, secured with a half-inch diameter hex bolt, washer, and channel nut. A vertical rod stiffener angle is clamped to the threaded rod with a minimum of three clamps per rod when dimension 'L' exceeds fifty times the diameter of the rod.
INSULATOR BETWEEN PIPE & HANGER PIPE HANGER 45 MAX. O NOTE: 'L' STRUCTURAL DECK ROD STIFFENER ANGLE - SEE NOTE 1/2" DIA. HEX BOLT WASHER AND CHANNEL NUT (TYP) 1 5/8" x 1 5/8" FRAMING CHANNEL ROD TO ANGLE CLAMP (MIN 3 PER ROD) NOTE: IF 'L' EXCEEDS 50 TIMES THE DIAMETER OF THE ROD, THEN A VERTICAL ROD STIFFENER IS REQUIRED 1/2' DIA. HILTI KB-TZ W/ 2-1/2" EMBED PER ICC ESR-1917 COUPLER NUT 1/2" DIA. THREADED ROD SPACING OF PIPE HANGER SHALL BE @ 24'-0" C.C. MAX
