A clean-out plug seals a no-hub clean-out body connected to cast-iron no-hub piping that extends upward to finished grade. An eighth bend and additional piping make grade, connecting below to a wye or another eighth bend at the end of the line. A minimum sixteen-inch by sixteen-inch concrete pad or asphalt topping surrounds the access point at the surface. Field verify type and requirements for special access housings and tops.

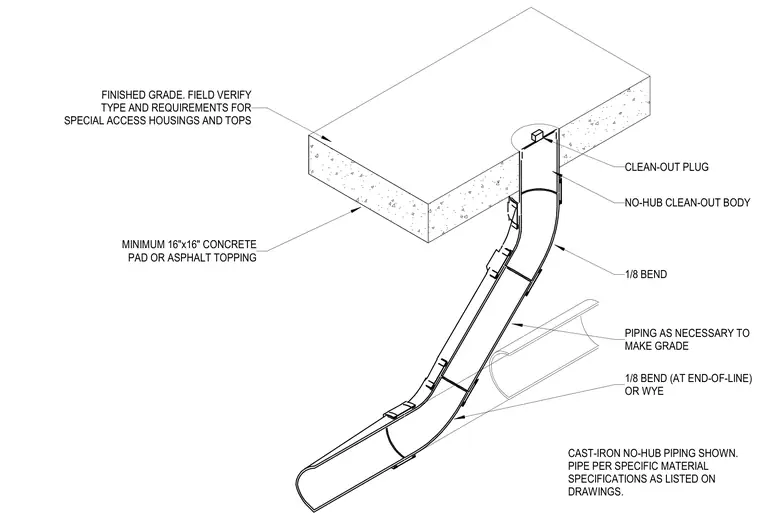

CLEAN-OUT PLUG NO-HUB CLEAN-OUT BODY 1/8 BEND PIPING AS NECESSARY TO MAKE GRADE 1/8 BEND (AT END-OF-LINE) OR WYE CAST-IRON NO-HUB PIPING SHOWN. PIPE PER SPECIFIC MATERIAL SPECIFICATIONS AS LISTED ON DRAWINGS. MINIMUM 16"x16" CONCRETE PAD OR ASPHALT TOPPING FINISHED GRADE. FIELD VERIFY TYPE AND REQUIREMENTS FOR SPECIAL ACCESS HOUSINGS AND TOPS
