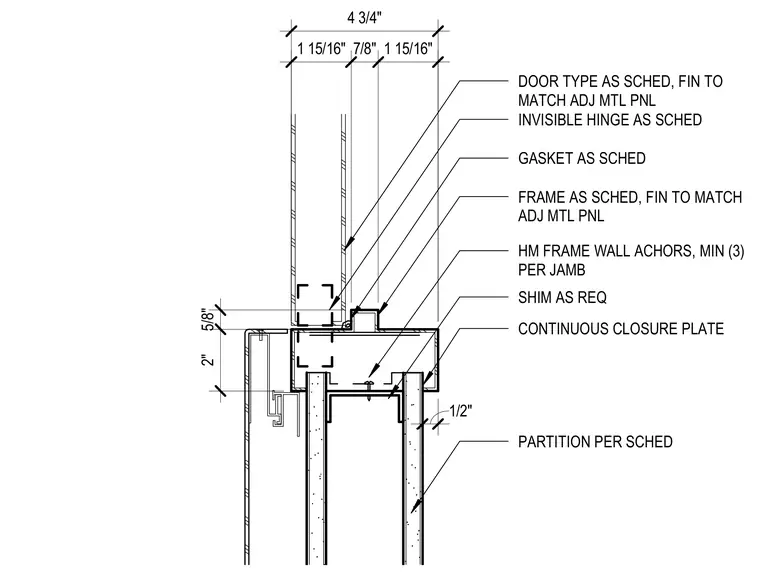

The hollow metal frame connects to a partition per schedule using a minimum of three wall anchors per jamb with shims as required. A continuous closure plate finishes the connection at the wall. The door includes an invisible hinge and gasket as scheduled, with finishes matching the adjacent metal panel.
PARTITION PER SCHED CONTINUOUS CLOSURE PLATE SHIM AS REQ HM FRAME WALL ACHORS, MIN (3) PER JAMB FRAME AS SCHED, FIN TO MATCH ADJ MTL PNL GASKET AS SCHED INVISIBLE HINGE AS SCHED DOOR TYPE AS SCHED, FIN TO MATCH ADJ MTL PNL 5/8" 2" 1/2" 1 15/16" 7/8" 1 15/16" 4 3/4"
