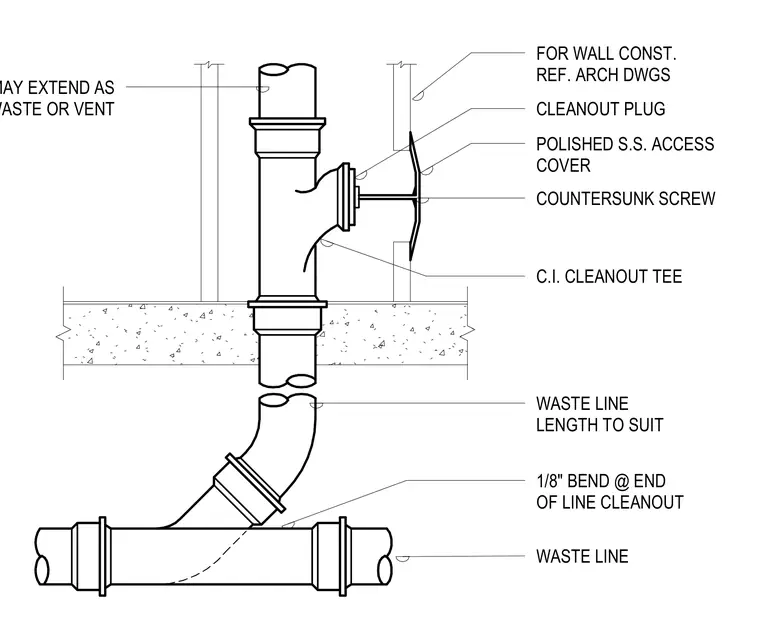

A cast iron cleanout tee is installed in a waste line within the wall cavity, extending to a cleanout plug. A polished stainless steel access cover is secured to the assembly using a countersunk screw, finishing flush with the wall construction. The waste line continues vertically, with the length adjusted to suit field conditions, and connects via an eighth-inch bend at the end of the line cleanout.
WASTE LINE 1/8" BEND @ END OF LINE CLEANOUT C.I. CLEANOUT TEE WASTE LINE LENGTH TO SUIT POLISHED S.S. ACCESS COVER COUNTERSUNK SCREW CLEANOUT PLUG FOR WALL CONST. REF. ARCH DWGS MAY EXTEND AS WASTE OR VENT
