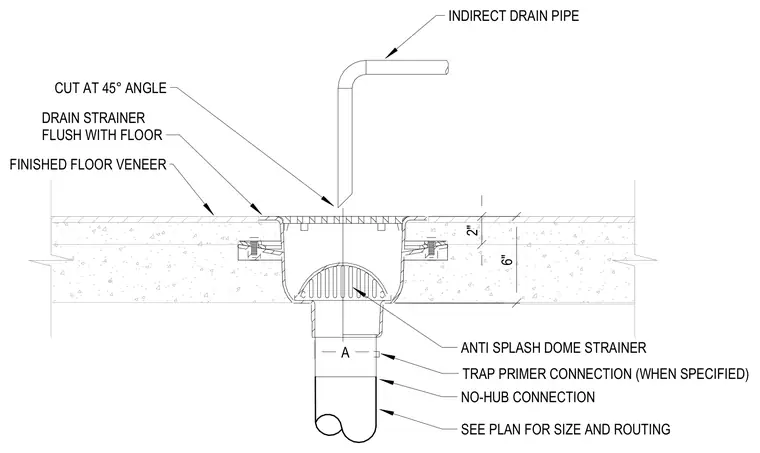

An indirect drain pipe terminates above the floor sink with a cut at a 45-degree angle. The drain strainer sits flush with the finished floor veneer. An anti-splash dome strainer is positioned inside the sink body. The outlet connects to a no-hub pipe connection and includes a trap primer connection when specified, with sizing and routing per plan.
A 2" 6" INDIRECT DRAIN PIPE SEE PLAN FOR SIZE AND ROUTING NO-HUB CONNECTION TRAP PRIMER CONNECTION (WHEN SPECIFIED) DRAIN STRAINER FLUSH WITH FLOOR FINISHED FLOOR VENEER ANTI SPLASH DOME STRAINER CUT AT 45° ANGLE
