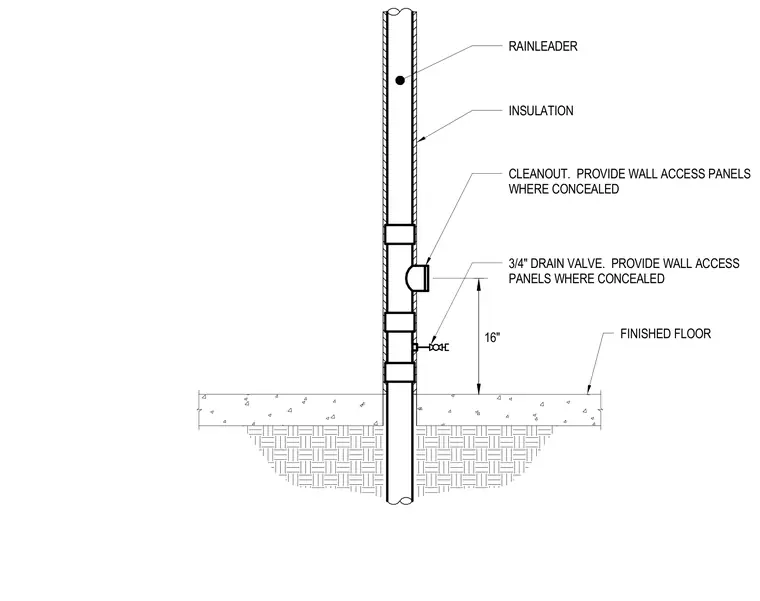

A vertical rain leader pipe extends downward through insulation and passes adjacent to a finished floor. A cleanout fitting is installed on the stack with a wall access panel provided where concealed. A three-quarter-inch drain valve connects to the pipe sixteen inches above the finished floor.
16" CLEANOUT. PROVIDE WALL ACCESS PANELS WHERE CONCEALED 3/4" DRAIN VALVE. PROVIDE WALL ACCESS PANELS WHERE CONCEALED INSULATION RAINLEADER FINISHED FLOOR
