The assembly is anchored to metal studs using a one-quarter-inch-by-eight-inch steel backing plate. Adjustable sleeves are fillet welded to the steel backing plate where the support arms screw into. Lock nuts secure the adjustable sleeves through the framing. A leveling screw and locking device stabilize the lavatory fixture. Mounting height is determined per architectural drawings.

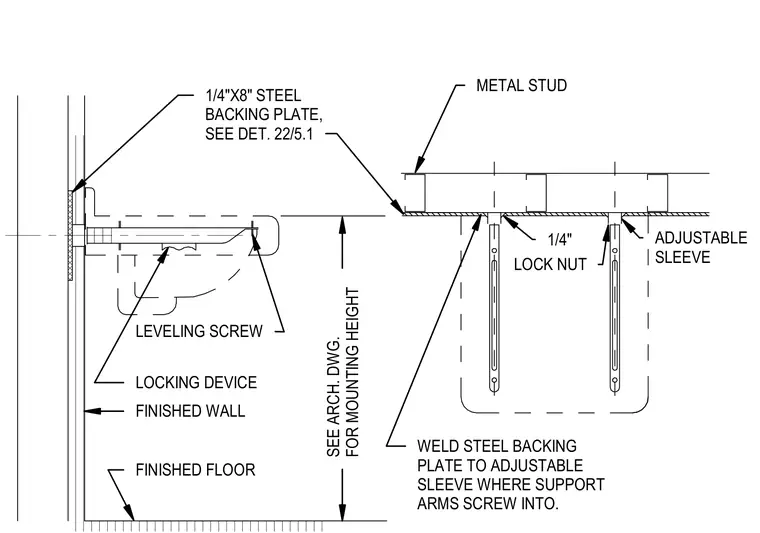

FINISHED FLOOR LEVELING SCREW FINISHED WALL LOCKING DEVICE LOCK NUT METAL STUD ADJUSTABLE SLEEVE 1/4"X8" STEEL BACKING PLATE, SEE DET. 22/5.1 WELD STEEL BACKING PLATE TO ADJUSTABLE SLEEVE WHERE SUPPORT ARMS SCREW INTO. 1/4" SEE ARCH. DWG. FOR MOUNTING HEIGHT
