A ground-mounted hose bib box is set flush within a finished grade or concrete slab over gravel sub-base. The valve housing connects to a three-quarter-inch iron pipe size cold water supply below. A drain port on the hose bib valve features tubing routed to the nearest indirect drain when located within the building envelope. The depth of bury is determined by local conditions and requirements.

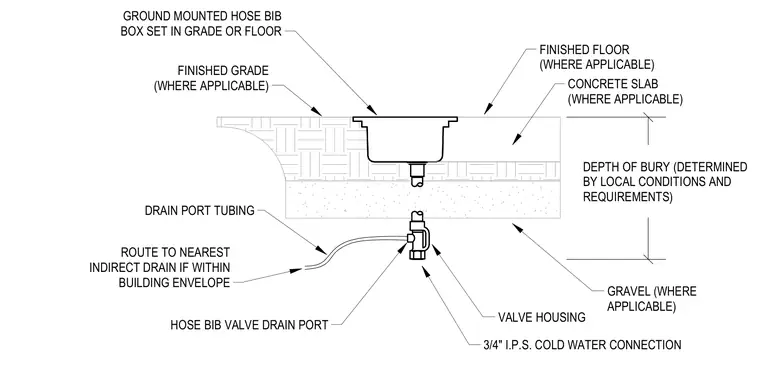

FINISHED FLOOR (WHERE APPLICABLE) FINISHED GRADE (WHERE APPLICABLE) CONCRETE SLAB (WHERE APPLICABLE) GRAVEL (WHERE APPLICABLE) GROUND MOUNTED HOSE BIB BOX SET IN GRADE OR FLOOR VALVE HOUSING 3/4" I.P.S. COLD WATER CONNECTION DRAIN PORT TUBING ROUTE TO NEAREST INDIRECT DRAIN IF WITHIN BUILDING ENVELOPE HOSE BIB VALVE DRAIN PORT DEPTH OF BURY (DETERMINED BY LOCAL CONDITIONS AND REQUIREMENTS)
