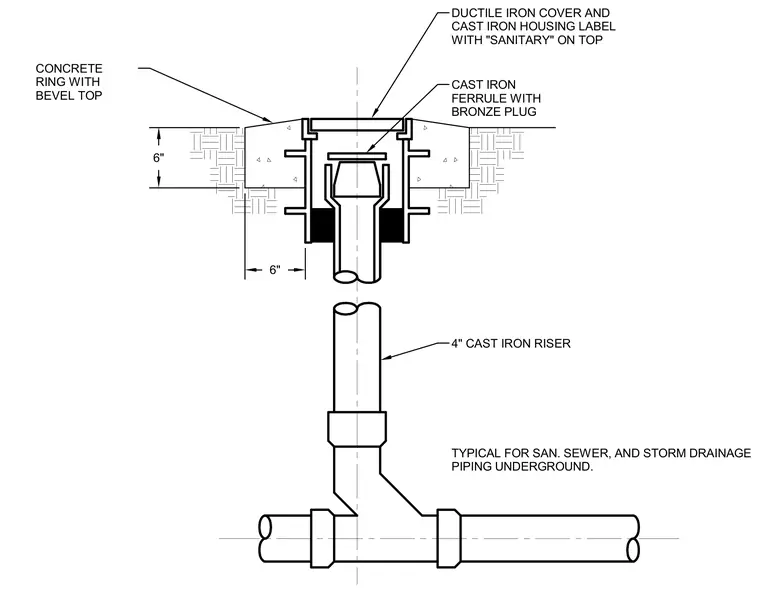

An underground cleanout assembly utilizes a four-inch cast iron riser connected to a sanitary sewer or storm drainage piping run. The riser terminates with a cast iron ferrule fitted with a bronze plug. A cast iron housing and ductile iron cover, labeled with 'sanitary' on top, sit flush within a six-inch concrete ring with a bevel top.
TYPICAL FOR SAN. SEWER, AND STORM DRAINAGE PIPING UNDERGROUND. 6" 6" CONCRETE RING WITH BEVEL TOP DUCTILE IRON COVER AND CAST IRON HOUSING LABEL WITH "SANITARY" ON TOP CAST IRON FERRULE WITH BRONZE PLUG 4" CAST IRON RISER
