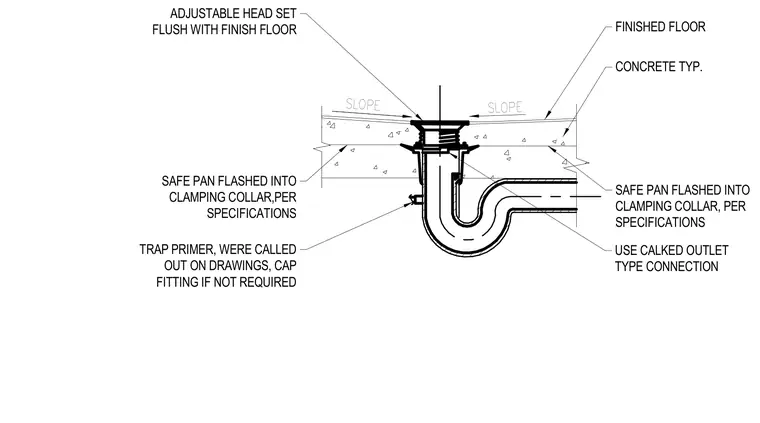

The adjustable head of the floor drain is set flush with the finished concrete floor, which is sloped toward the drain. A safe pan is flashed into the clamping collar per specifications. A trap primer connection is provided, with a cap fitting used if not required. The drain outlet connects via a calked outlet type connection to the waste piping below the suspended slab.
SLOPE SLOPE ADJUSTABLE HEAD SET FLUSH WITH FINISH FLOOR SAFE PAN FLASHED INTO CLAMPING COLLAR,PER SPECIFICATIONS TRAP PRIMER, WERE CALLED OUT ON DRAWINGS, CAP FITTING IF NOT REQUIRED FINISHED FLOOR CONCRETE TYP. SAFE PAN FLASHED INTO CLAMPING COLLAR, PER SPECIFICATIONS USE CALKED OUTLET TYPE CONNECTION
