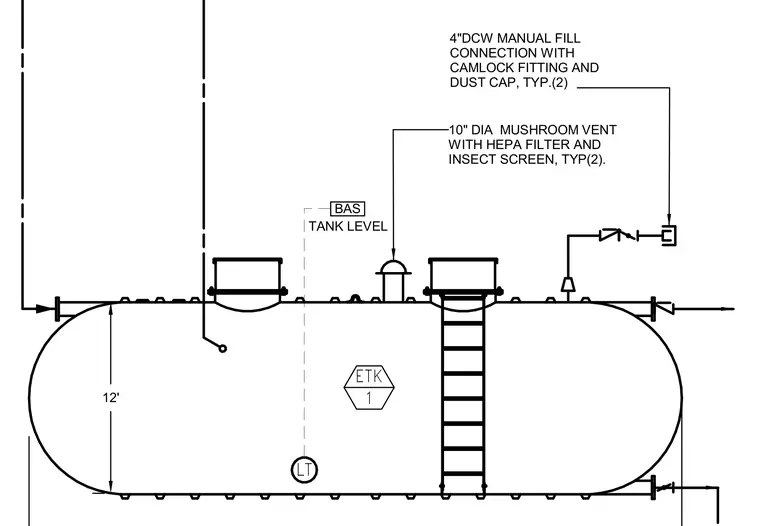

A ten-inch diameter mushroom vent equipped with a high-efficiency particulate air filter and an insect screen connects to the top of the storage tank typically in two locations. A four-inch domestic cold water manual fill connection equipped with a camlock fitting and dust cap ties into the tank piping assembly typically in two locations. A twelve-foot building automation system tank level sensor monitors the liquid level within the vessel.
LT ETK 1 10" DIA MUSHROOM VENT WITH HEPA FILTER AND INSECT SCREEN, TYP(2). 4"DCW MANUAL FILL CONNECTION WITH CAMLOCK FITTING AND DUST CAP, TYP.(2) 12' BAS TANK LEVEL
