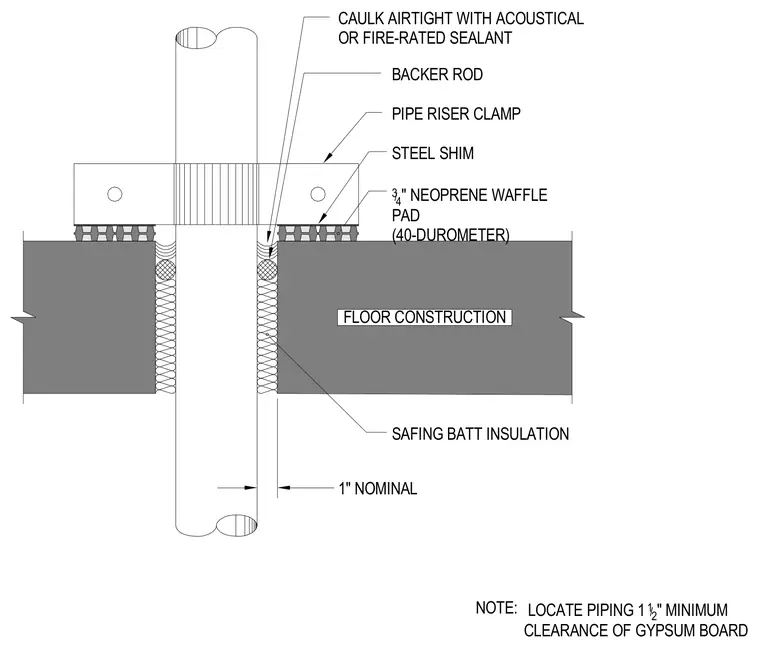

A vertical pipe riser penetrates the floor construction with a one-inch nominal clearance and is supported by a pipe riser clamp resting on steel shims and a three-quarter-inch thick forty-durometer neoprene waffle pad. The annular space around the pipe is packed with safing batt insulation and backer rod, then sealed airtight with acoustical or fire-rated caulk. Piping must be located with a one-and-a-half-inch minimum clearance from gypsum board.
LOCATE PIPING 1 1 /2 " MINIMUM CLEARANCE OF GYPSUM BOARD NOTE: STEEL SHIM 3/4 " NEOPRENE WAFFLE PAD (40-DUROMETER) FLOOR CONSTRUCTION SAFING BATT INSULATION 1" NOMINAL CAULK AIRTIGHT WITH ACOUSTICAL OR FIRE-RATED SEALANT PIPE RISER CLAMP BACKER ROD
