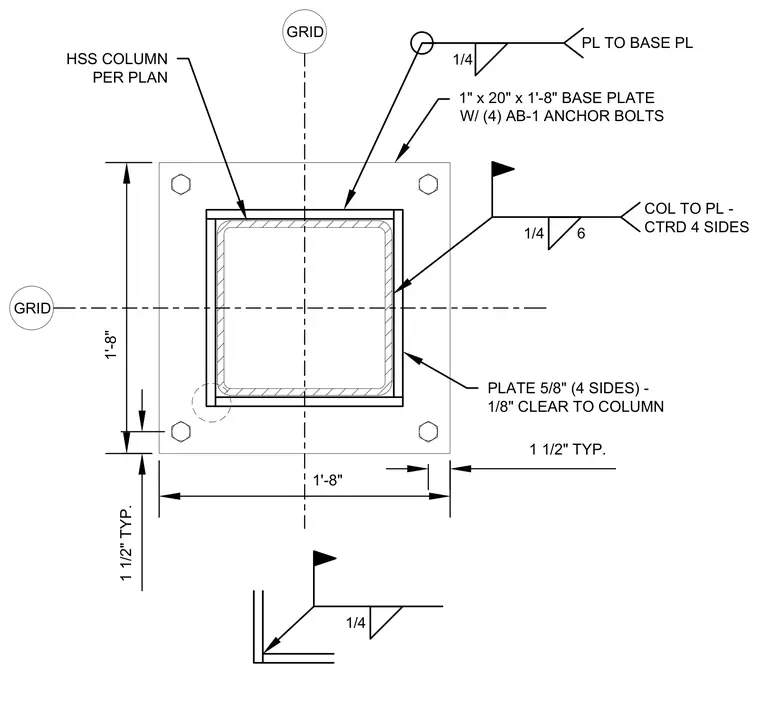

A hollow structural section column is centered on a 1-inch by 20-inch by 1-foot 8-inch steel base plate secured by four AB-1 anchor bolts. Four 5/8-inch plates are positioned around the column perimeter with a 1/8-inch clearance gap. The column connects to the plates with a 1/4-inch fillet weld centered on four sides. The plates connect to the base plate with a 1/4-inch fillet weld.
1'-8" 1'-8" 1 1/2" TYP. GRID GRID HSS COLUMN PER PLAN 1" x 20" x 1'-8" BASE PLATE W/ (4) AB-1 ANCHOR BOLTS 1 1/2" TYP. 1/4 1/4 PLATE 5/8" (4 SIDES) - 1/8" CLEAR TO COLUMN PL TO BASE PL COL TO PL - CTRD 4 SIDES 6 1/4
