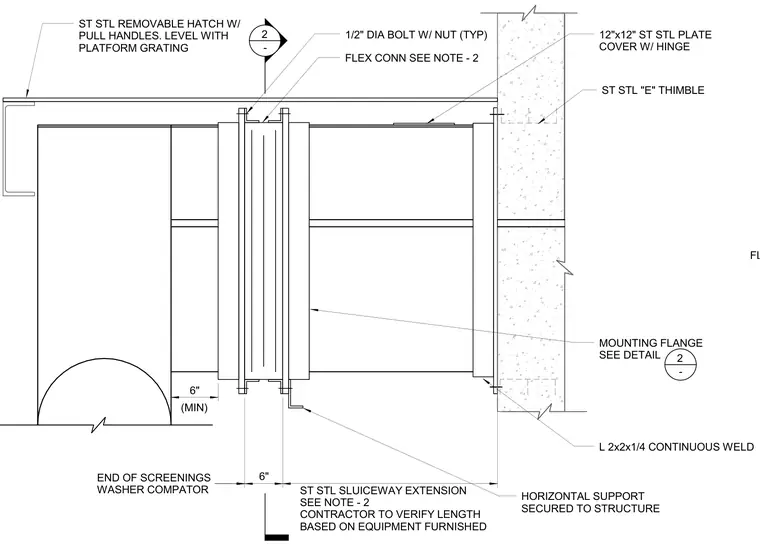

A stainless steel sluiceway extension connects to equipment with a flexible connection secured by half-inch diameter bolts with nuts typical. A stainless steel "E" thimble with a mounting flange secures to the structure using a continuous weld on a two-by-two-by-one-quarter-inch angle. A twelve-by-twelve-inch stainless steel plate cover with a hinge provides access, and a removable stainless steel hatch with pull handles aligns level with the platform grating.
6" FLEX CONN SEE NOTE - 2 1/2" DIA BOLT W/ NUT (TYP) END OF SCREENINGS WASHER COMPATOR ST STL SLUICEWAY EXTENSION SEE NOTE - 2 CONTRACTOR TO VERIFY LENGTH BASED ON EQUIPMENT FURNISHED 12"x12" ST STL PLATE COVER W/ HINGE HORIZONTAL SUPPORT SECURED TO STRUCTURE ST STL "E" THIMBLE MOUNTING FLANGE SEE DETAIL 2 - 2 - L 2x2x1/4 CONTINUOUS WELD ST STL REMOVABLE HATCH W/ PULL HANDLES. LEVEL WITH PLATFORM GRATING 6" (MIN) FLEXIBLE MATERIAL
