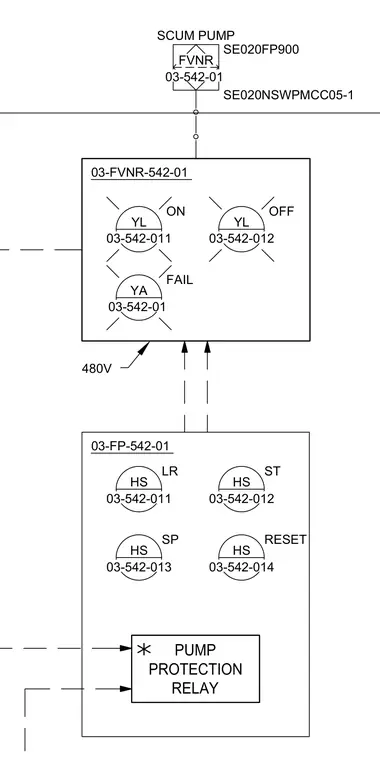

A 480V scum pump motor is connected to a full-voltage non-reversing starter unit designated 03-FVNR-542-01. The starter enclosure contains yellow indicator lights for ON and OFF statuses, along with a fail alarm indicator. A separate control station designated 03-FP-542-01 houses hand-off-auto selector switches and a reset button. A pump protection relay is wired into the control circuit to provide overload and fault monitoring.
HS 03-542-011 LR HS 03-542-012 ST FVNR SCUM PUMP SE020NSWPMCC05-1 SE020FP900 HS 03-542-013 SP )915 480V YL 03-542-012 OFF YA FAIL YL 03-542-011 ON HS 03-542-014 RESET )3
