Plumbing · P-PPZ7R

Insulated Pipe through Rated Wall

Materials

Concrete Timber / Wood Masonry / CMU Gypsum / Drywall

Elements

Walls Floors / Slabs Insulation Roof / Floor Openings

About this detail

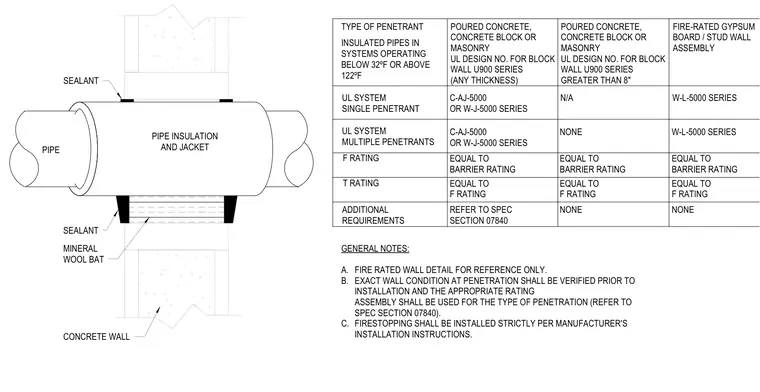

An insulated pipe passes through a concrete or rated wall assembly with an annular space packed with mineral wool bat insulation and finished with sealant on both sides. The pipe features protective insulation and a jacket along its run through the penetration. Accompanying tables outline specific Underwriters Laboratories system designations, F ratings, and T ratings for single and multiple penetrants across concrete, concrete block, masonry, and gypsum board stud wall assemblies. General notes require verifying wall conditions prior to installation and installing firestopping strictly per manufacturer instructions.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
