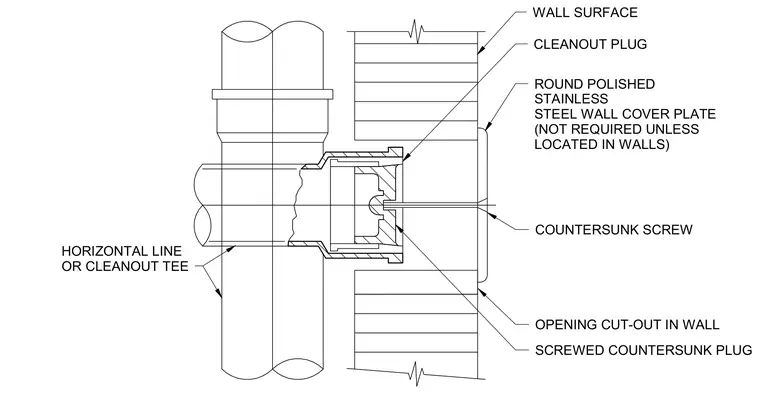

A cleanout tee connects into the piping stack behind a wall surface. A screwed countersunk plug seals the cleanout opening. A round polished stainless steel wall cover plate fastens to the plug with a countersunk screw, flush against the finished wall cut-out.
WALL SURFACE CLEANOUT PLUG ROUND POLISHED STAINLESS STEEL WALL COVER PLATE (NOT REQUIRED UNLESS LOCATED IN WALLS) COUNTERSUNK SCREW SCREWED COUNTERSUNK PLUG OPENING CUT-OUT IN WALL HORIZONTAL LINE OR CLEANOUT TEE
