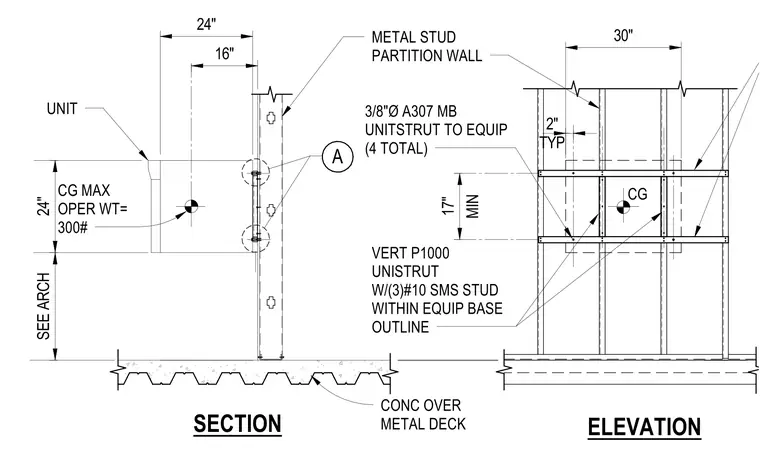

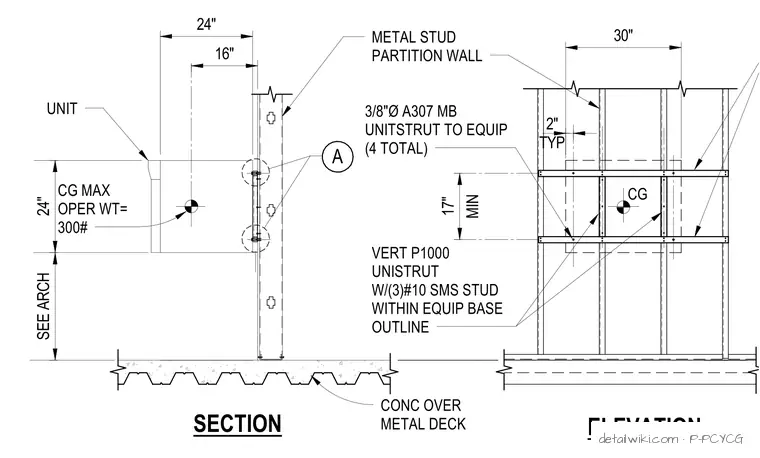

The warming cabinet unit with a maximum operating weight of 300 pounds is mounted against a cold-formed metal stud partition wall supported by a concrete over metal deck floor assembly. Vertical P1000 Unistrut channels are secured within the equipment base outline using three number 10 sheet metal screws per stud. Four total 3/8-inch diameter A307 machine bolts fasten the unit to the Unistrut framing. The center of gravity and key dimensional clearances are explicitly called out for structural and seismic coordination.
UNIT CG METAL STUD PARTITION WALL ELEVATION SECTION CG MAX OPER WT= 300# CONC OVER METAL DECK 24" 30" TYP 2" 3/8"Ø A307 MB UNITSTRUT TO EQUIP (4 TOTAL) A 24" SEE ARCH MIN 17" VERT P1000 UNISTRUT W/(3)#10 SMS STUD WITHIN EQUIP BASE OUTLINE 16"
