Plumbing · P-PBRM5

Floor Drain Assembly in Concrete Slab with Lead or Copper Flashing

Materials

Elements

Floors / Slabs Waterproofing / Flashing Drainage Connections / Plates

About this detail

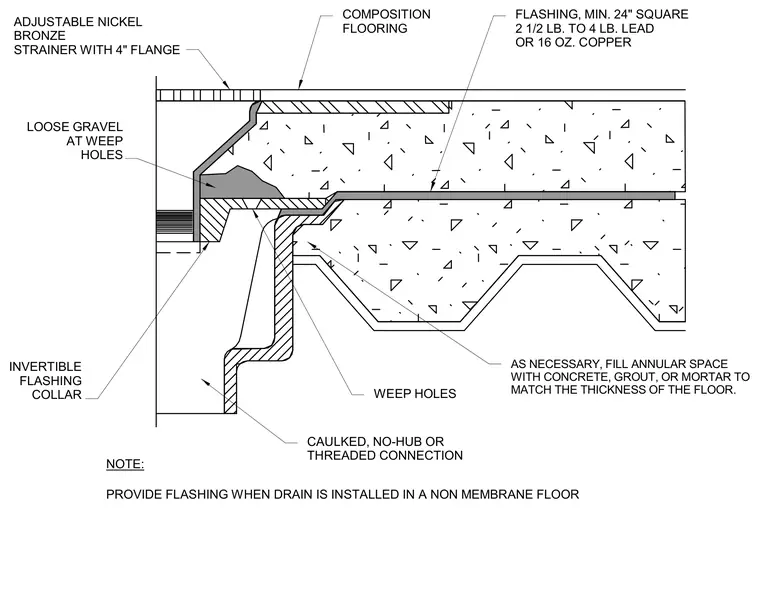

An adjustable nickel bronze strainer with a four-inch flange sits flush with the composition flooring surface. The drain body features an invertible flashing collar and weep holes surrounded by loose gravel to prevent clogging. A minimum twenty-four-inch square, two-and-a-half to four-pound lead or sixteen-ounce copper flashing sheet is provided beneath the floor assembly when installed in a non-membrane floor. The annular space around the drain is filled with concrete, grout, or mortar matching the floor thickness, terminating in a caulked, no-hub, or threaded connection as necessary.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
