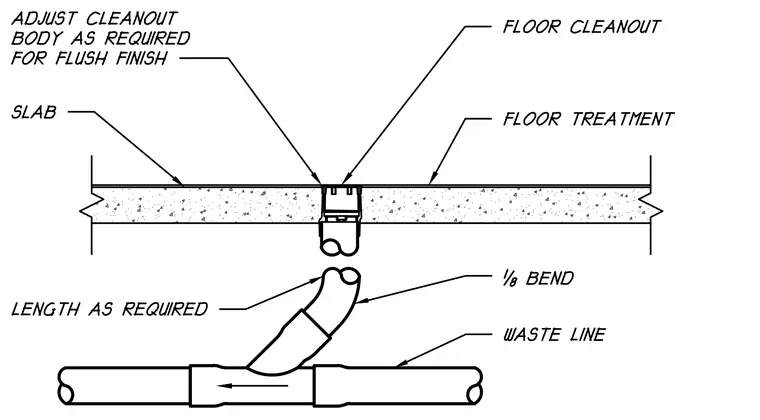

A floor cleanout body is installed within a concrete slab and adjusted for a flush finish with the surrounding floor treatment. The cleanout connects to a waste line via a one-eighth bend fitting with length as required.
