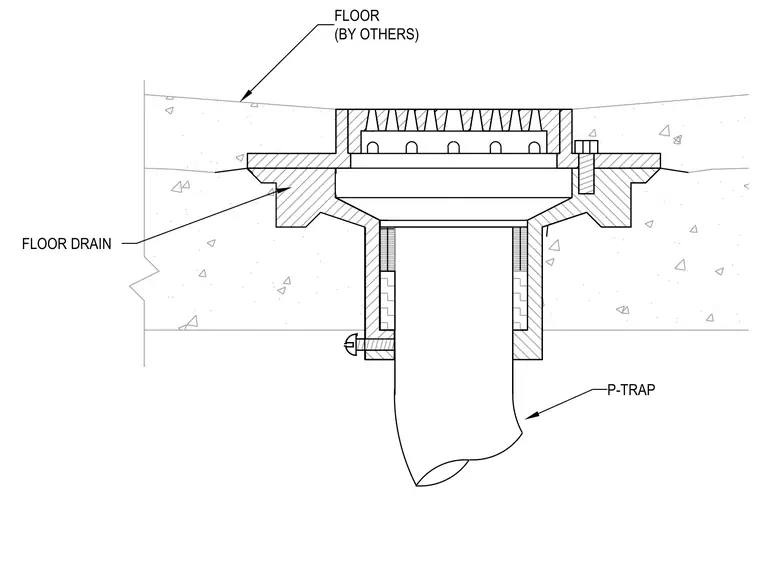

A floor drain assembly is installed within a concrete floor slab provided by others. The drain body connects to a P-trap directly below to maintain a water seal against sewer gases. The surrounding floor slopes toward the drain grate for positive surface drainage.
