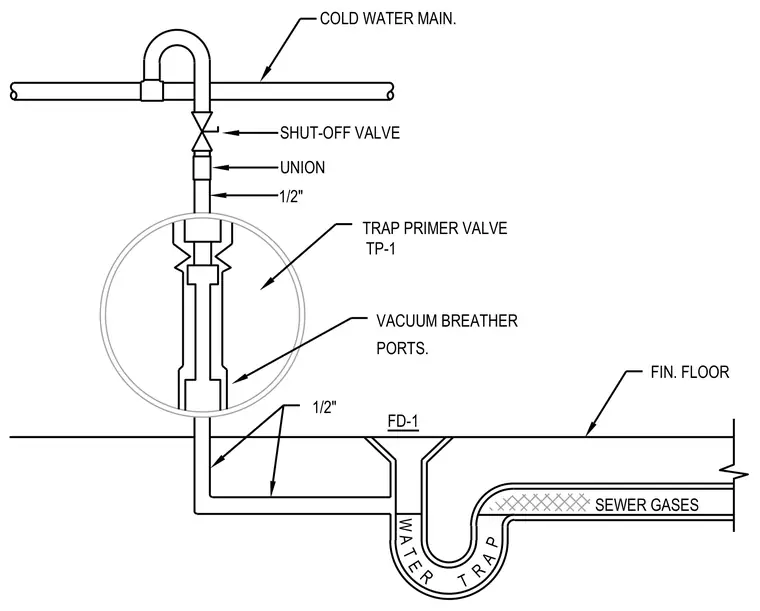

A one-half inch cold water main feeds a trap primer valve assembly designated TP-1, complete with a shut-off valve, a union fitting, and vacuum breather ports. The trap primer line extends down to supply water to floor drain FD-1, maintaining the water seal in the trap to prevent sewer gases from entering the space below the finished floor.
FD-1 1/2" TRAP PRIMER VALVE COLD WATER MAIN. TP-1 VACUUM BREATHER PORTS. 1/2" FIN. FLOOR SEWER GASES E A R R T W T A P SHUT-OFF VALVE UNION
