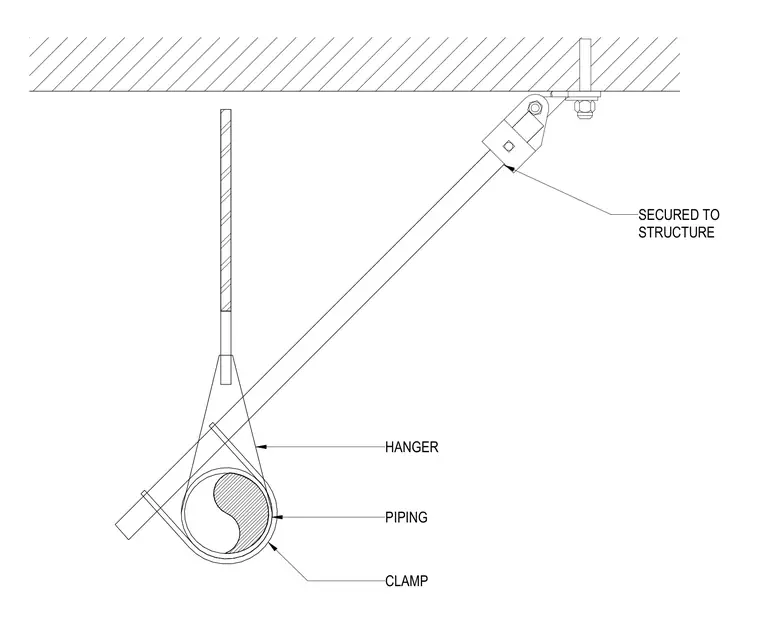

A suspended piping assembly is secured to the overhead concrete structure using a dedicated hanger, clamp, and threaded rod or strut. The piping is cradled within a pipe clamp and connected to a vertical hanger strap. A diagonal brace is secured to the structure overhead to provide lateral restraint.
