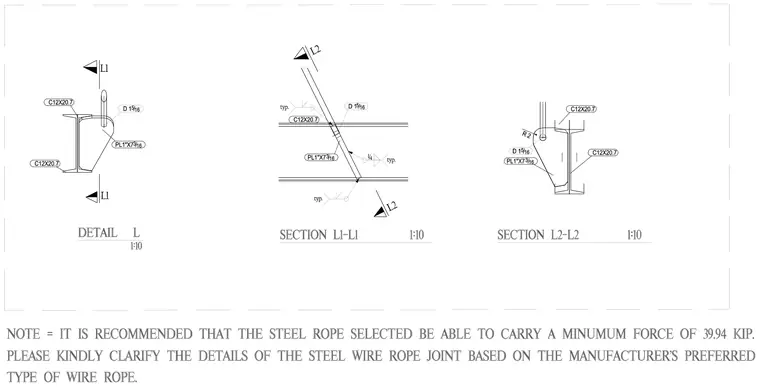

A steel wire rope connection utilizes C12x20.7 channel steel members and a 1-inch thick by 7-3/16-inch plate. The assembly includes 15/16-inch diameter drill holes and welded connections specified with typical fillet welds of 1/4-inch size. Section views L1-L1 and L2-L2 provide orthogonal perspectives of the cable routing and the steel plate orientation relative to the channel profiles. A general note specifies that the selected steel rope must carry a minimum force of 39.94 kips, with joint details deferred to the manufacturer's preferred wire rope type.
