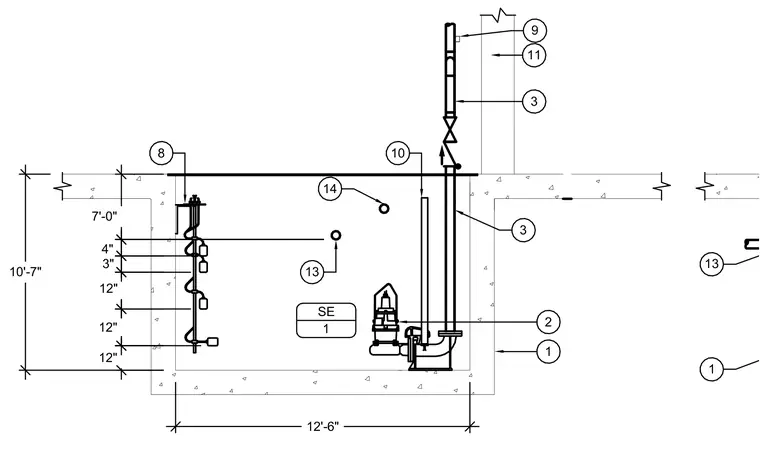

A duplex sewage ejector installation featuring a concrete basin with submersible pumps, discharge piping with check valves, float switches for level control, and vent piping. The assembly includes a basin dimensioned 12'-6" wide by 10'-7" deep with internal float switch spacings.
